0.50 hp siemens k series marine gear motor with brake

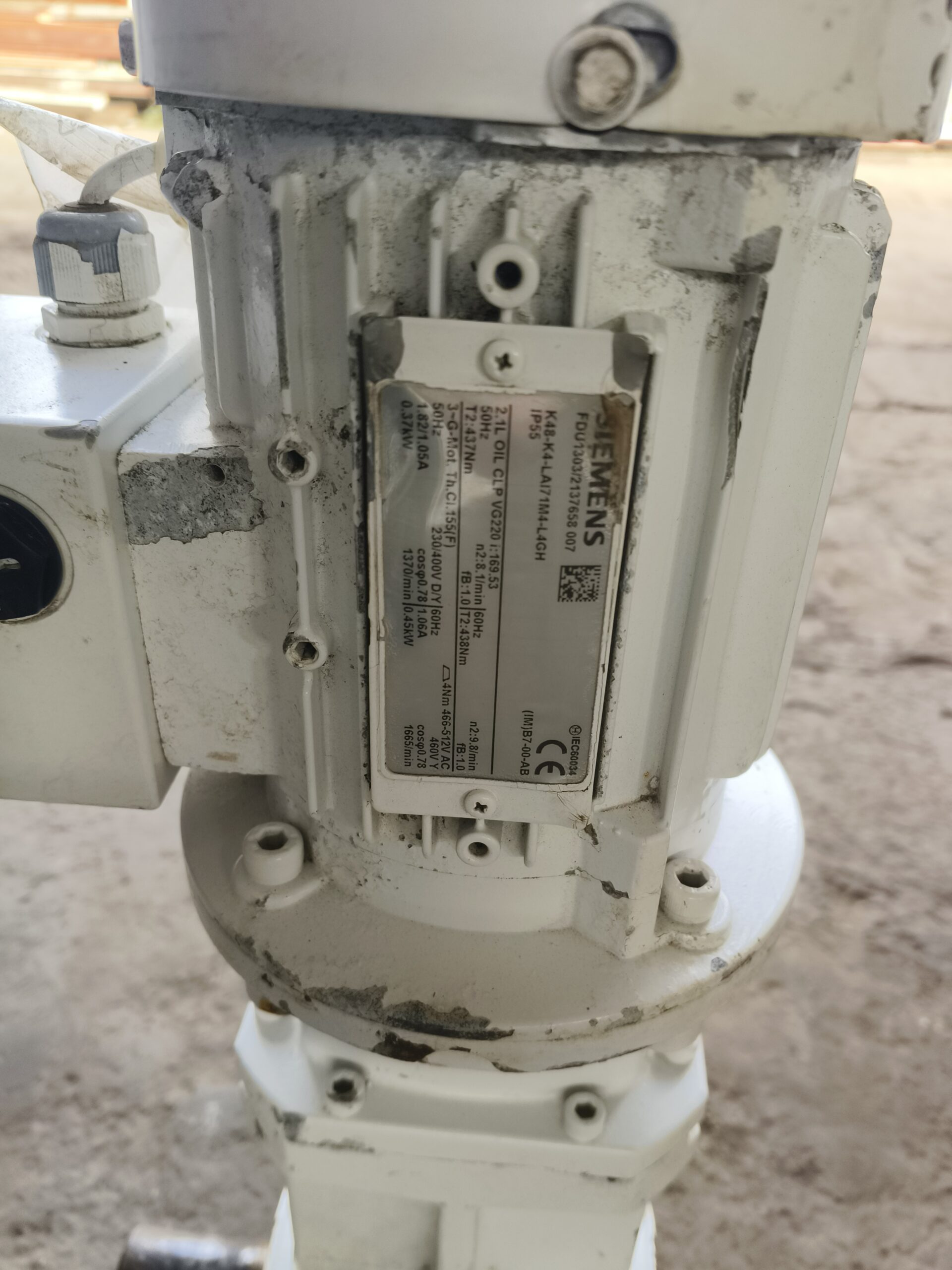

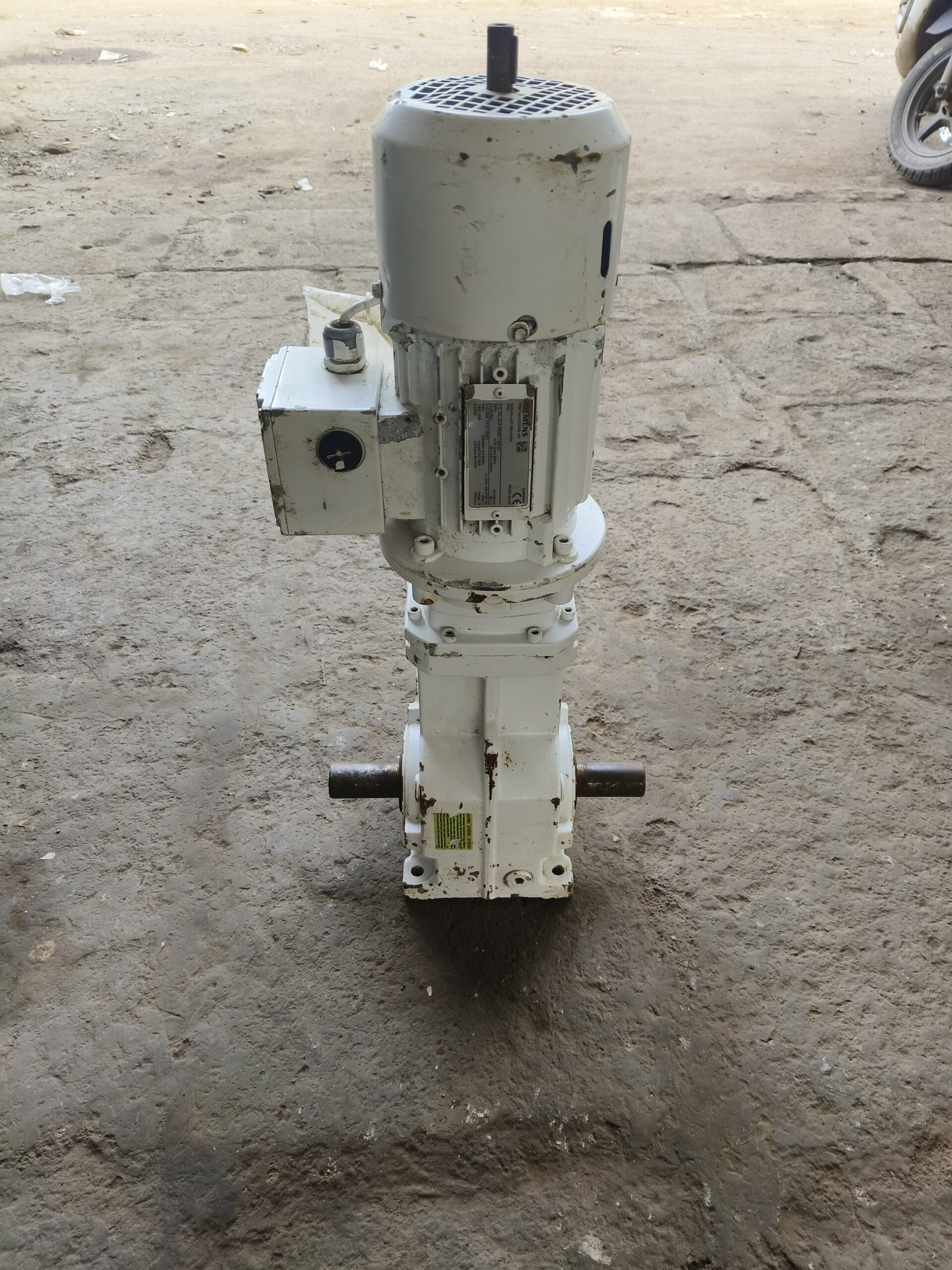

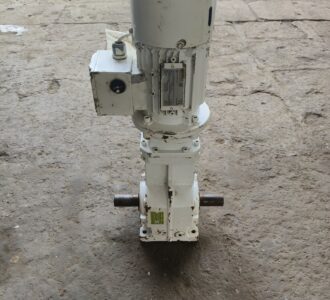

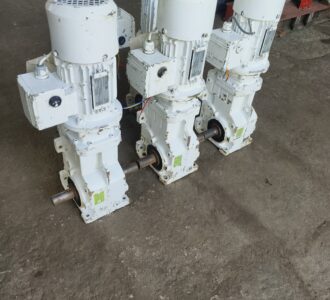

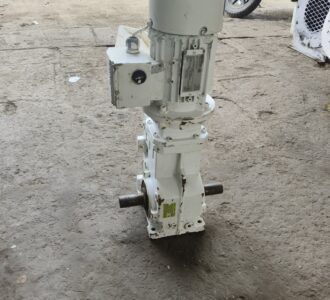

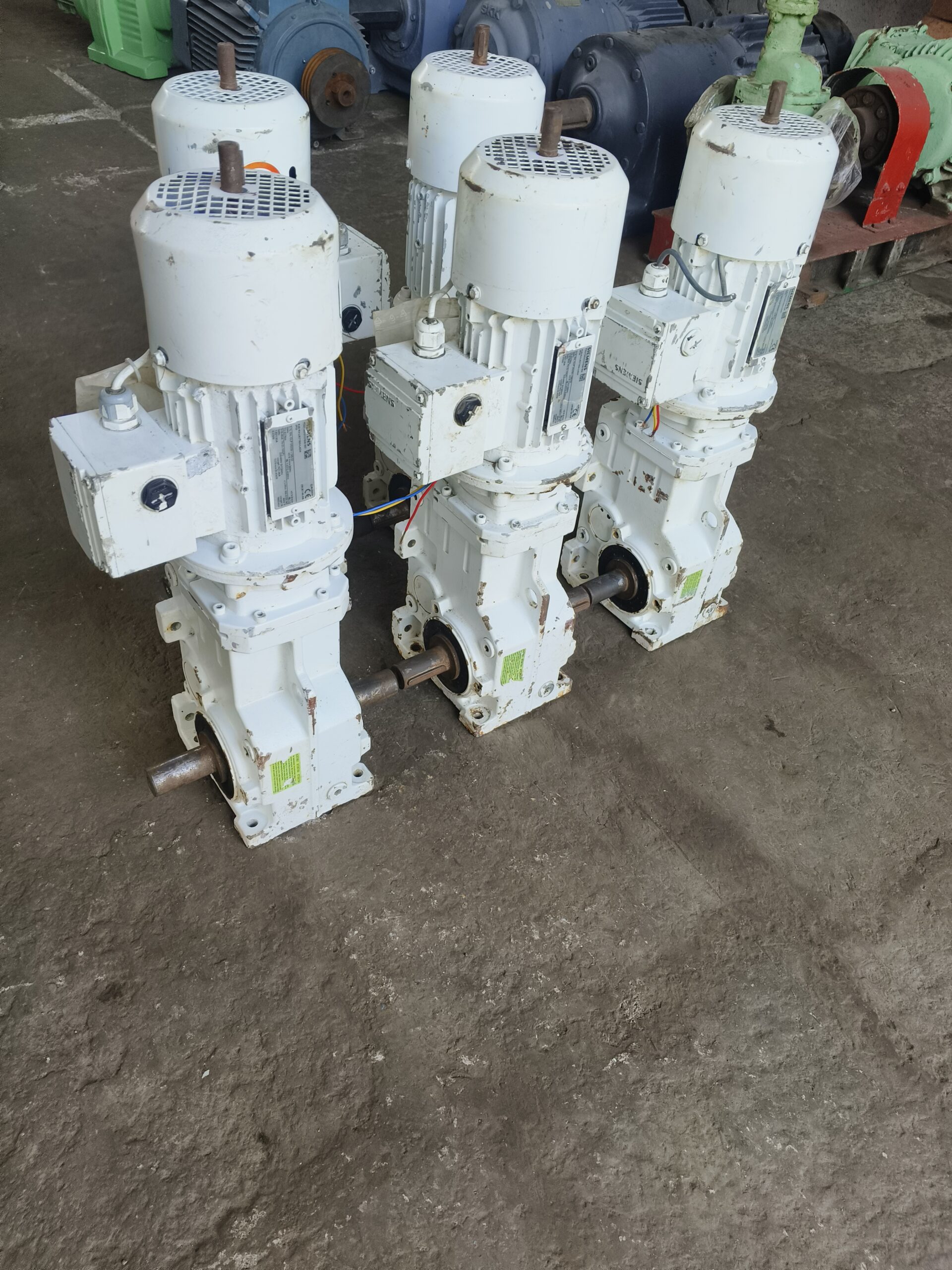

The SIEMENS K-Series Geared Motor is a compact 0.37 kW (approx. 0.5 HP), 3-phase gear motor with brake and double shafting, designed for low-speed mechanical drive applications. The nameplate specifies gearbox type K48-K4-LAI71M4-L4GH, gear ratio i = 169.53, IP55 protection, and 2.1 L CLP VG220 gearbox oil. At 50 Hz, the unit provides approximately 8.1 RPM output speed with 437 Nm output torque, while at 60 Hz it provides approximately 9.8 RPM with 438 Nm output torque. The motor is rated 230/400 V D/Y at 50 Hz, with 1.82/1.05 A current and 0.37 kW power; the 60 Hz rating shown is /400 V /Y, 1.06 A, 0.45 kW, with motor speed of approximately 1665 RPM. The nameplate also specifies Thermal Class 155(F), cos φ 0.78, FB 1.0, and IEC 60034 compliance marking. Its double-shaft output arrangement and integrated brake make it suitable for controlled low-speed drives in Marine Machinery, Marine Equipment, Ship Machinery, Ship Equipment, Vessel Machinery, Shipboard Equipment, Marine Auxiliary Machinery, Marine Deck Machinery, Marine Material Handling Equipment, Marine Conveyor Systems, Cargo Handling Machinery, Winch Machinery, Shipyard Machinery and other marine mechanical drive applications,

applications

- Marine ship machinery
- Siemens gear motor
- Marine motors
- Marine deck machinery
- Marine conveyor systems
- Marine spare parts supplier
